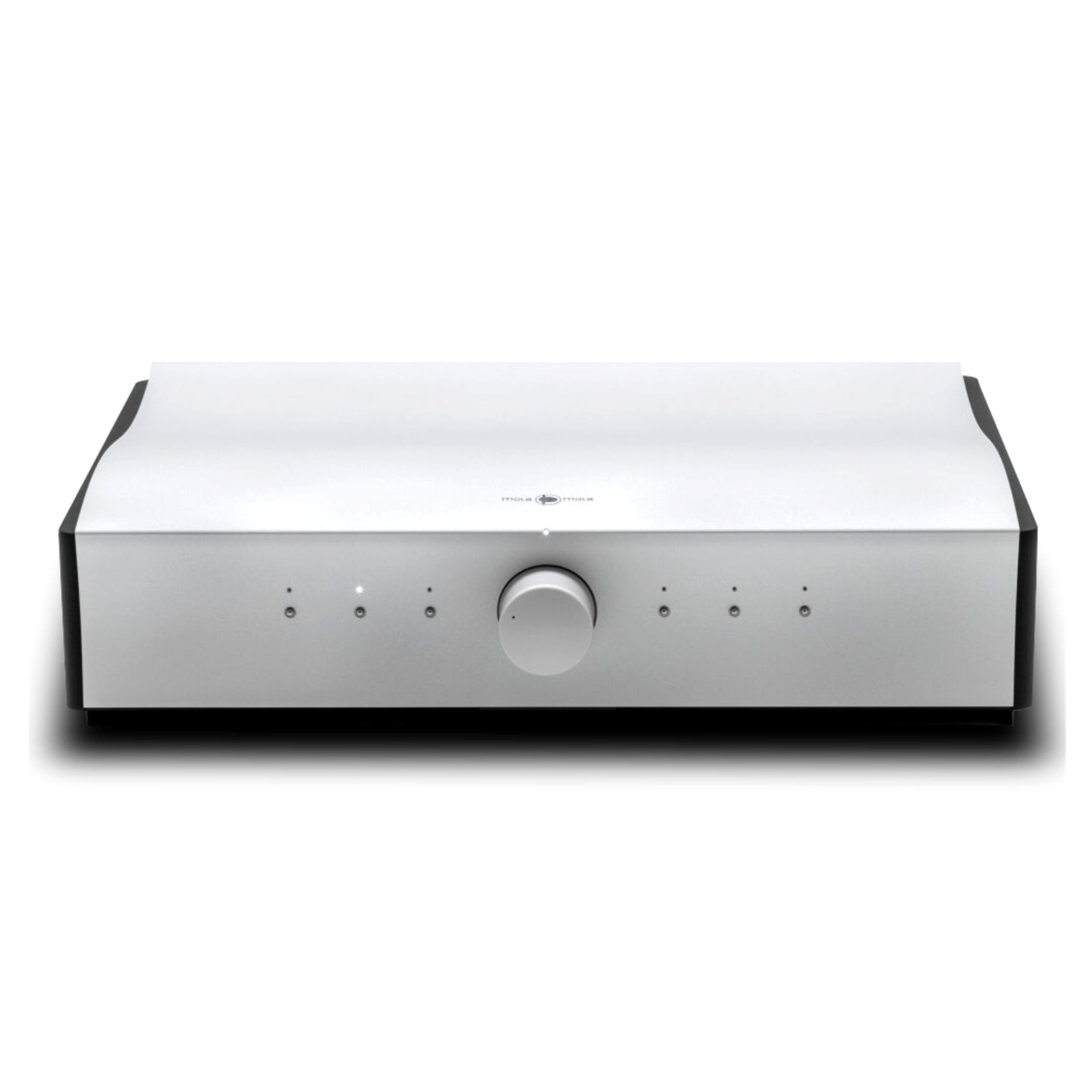

MOLA MOLA AUDIO-MAKUA PREAMPLIFIER NEW

$18,495.00

IN STOCK WITH SUPPLIER AND AVAILABLE TO ORDER

Analogue design for a digital age

The basic Makua is an extremely transparent gain stage and a programmable routing matrix. The chassis has ample room to fit optional extras, most notably a DAC and a phono stage. The 6 preset buttons are programmable via RS232 or Bluetooth to access any combination of channel, processing and routing. In a system with mainly digital sources, the preset buttons would be programmed to select between them. Vinyl lovers on the other hand might want to use several buttons to select the same turntable but with different EQ settings to suit their large collection of historic LP's.

Add the Mola Mola Audio DAC module or Phono module to dive deeper into sound!

I/o

5 balanced and 5 unbalanced inputs, selectable by switch and software
2 parallel balanced outputs for bi-amping (XLR)
Mastering mode
4 programmable trigger outputs (3.5mm Jack)
- All inputs routable through optional processor boards like the phono stage
  - Processing balance and input gain offset
  - Phase invert and mono sum
  - Full software control of routing and processing

Performance

Maximum input/output level: 20dBu (7.75Vrms)
Unweighted noise voltage at unity gain: 1.9uV
Input impedance: 100kohm
Output impedance: 44ohm
Distortion at maximum signal level (THD, IMD): not measurable, estimated around -150dB
Bandwidth >200kHz
Gain range: -70dB to +15dB
Gain resolution: <1dB, better than 0.2dB over normal listening range
