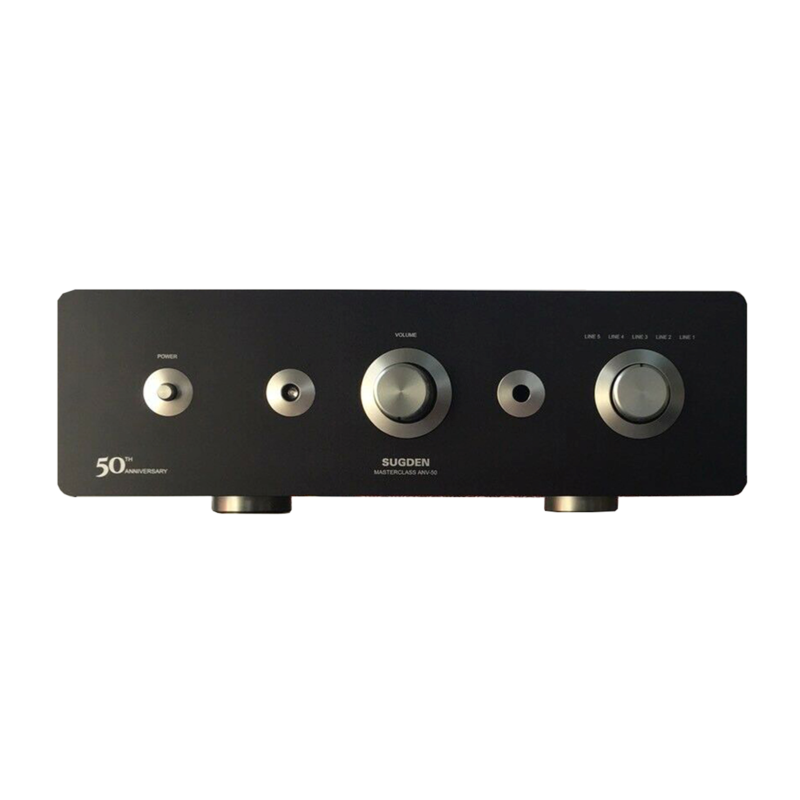

SUGDEN ANV-50 INTEGRATED AMPLIFIER BLACK NEW

$10,295.00

The Masterclass ANV-50 is a new integrated amplifier released to celebrate Sugden Audio’s fiftieth anniversary. It is a unique design with many innovative features and specially developed audio circuits. The ANV-50 has at its heart, a pure class A amplifier and this is coupled to an advanced ‘ideal’ final output stage. This unique two stage amplification system guarantees our signature pure class A sound, with the ability to drive the vast majority of loudspeaker systems.

As the ANV-50 is an integrated amplifier it has an internal pre-amplifier, developed specifically for this amplifier. The circuit is a line drive design and uses the minimum number of components, all of which are high quality. This provides a very open and natural sound and demonstrates that when carefully engineered, less can be more.

When the ANV-50 does not receive an input signal it has a very low power consumption of only 20 Watts, making it extremely efficient. As the heatsinks are mounted internally with minimum contact to the outer case it only runs slightly warm to the touch.

Loudspeaker matching with the ANV-50 should never be a problem. With an output of 50 Watts into 8 Ohms that can double in to lower impedances, room size and loudspeaker sensitivity becomes less of an issue so a much larger range of loudspeakers can be enjoyed.

Inputs: Five line level operated by relays

Outputs: pre out (variable), tape out, stereo multi-way binding posts.
Volume control: Remote control (RC5 handset included)
Line Input Sensitivity: 110mV @ zero attenuation for full output
Power Output: 50 Watts into 8 Ohms both channels working, 100 Watts into 4 Ohms both channels working
Frequency Response: +/-1dB 12Hz-45kHz
Bandwidth: 8Hz-86kHz
Signal to noise: >85dB
